Product Specifications
Aqualux R290 by Wilson
How Aqualux Heat Pumps Work
The Aqualux Heat Pump works the same as a refrigerator in reverse.
A refrigerator removes heat from inside a box and transfers it via heat exchangers to the surrounding room.
A heat pump hot water system pulls the heat from the surrounding air and transfers it to heat water which is then stored in the tank.
Unlike a traditional storage hot water system that uses electric elements, much like a kettle, to heat the water, the technology used in heat pumps continues to evolve as we move to electrification and our emissions of Carbon Dioxide.
We have observed these technology improvements and have developed a system that operates in all Australian climates.
Features
The Wilson Aqualux heat Pump hot water system utilises R-290 refrigerant. R-290 minimises the effects on our planet both minimising Global Warming and Ozone depletion.
- Superior Energy Efficiency with a coefficient of performance (COP) of greater than 4.5
- Delivers hot water up to 75°C, ideal for flow and return systems in larger homes or small commercial applications.
- Split design allows greater flexibility of installation options.
- Designed for Australian climatic conditions – 25°C to 45°C
- Low noise of 50 dB(A) at 1 M
- Various operating modes – Holiday mode, Performance mode, and Silent mode
- Full function remote control
- Long-life stainless-steel tank
- No electric element maximizes energy efficiency
- Control logic designed to optimise PV power usage.
WiFi connectivity for easy control and diagnostics
Stay in control with the touch of your fingers.
- Large touch screen that can be mounted on the unit or inside the home
- Technician share capability puts you in control of who is dialing into your system allowing remote diagnostics and lower service costs
- Full functionality control via iPhone or Android
- Real-time temperature monitoring and adjustment
- 4 operating modes controlled from WiFi connection:
- Smart mode – optimizes system for minimal energy consumption
- Quiet mode – minimal noise if the system is set to operate at night to take advantage of off-peak power
- Powerful mode – maximum power to reduce heating time
Specifications
Specifications
| Model | WHP-00315A |
| [Hot Water] Ambient Temp. (DB/WB): 20°C/15°C Water Temp from 15°C to 55°C | |
| Heating Capacity (kW) | 5.02 |
| Power Input (kW) | 1.11 |
| Current Input | 4.92 |
| COP (kW) | 4.52 |
| [Hot Water] Ambient Temp. (DB/WB): 7°C/6°C Water Temp from 9°C to 55°C | |
| Heating Capacity (kW) | 4.2 |
| Power Input (kW) | 1.16 |
| Current Input (A) | 5.15 |
| COP (kW) | 3.62 |
| Power Supply (V/Ph/Hz) | 200-240V-/50Hz |
| Max. Power Input (kW) | 1.32 |
| Max. Running Current (A) | |
| Heating Operating Ambient Temp. Range (°C) | minus 25 to 45 |
| Rated Water Temperature (°C) | 60 |
| Max. Outlet Water Temperature (°C) | 75 |
| Rated Water Flow (m3/h) | 0.86 |
| Hot Water Capacity (L/h) | 108 |
| Water Pressure Drop (kPa) | 15 |
| Compressor Brand | Mitsubishi |
| Fan Motor Type | DC Motor |
| Circulating Pump Brand | Shinhoo |
| Water Side Heat Exchanger | Double-Wall Plate Heat Exchanger |
| Refrigerant Type | R290 |
| Water Proof Class | IPX4 |
| Water Pipe Connection (inch) | G 3/4" |
| Sound Pressure Level at 1 Meter (dB/A) | 50 |
| Net Weight / Gross Weight (kg) | 60/75 |
| Net Dimensions (L x W x H) | 1040 x 390 x 576 |

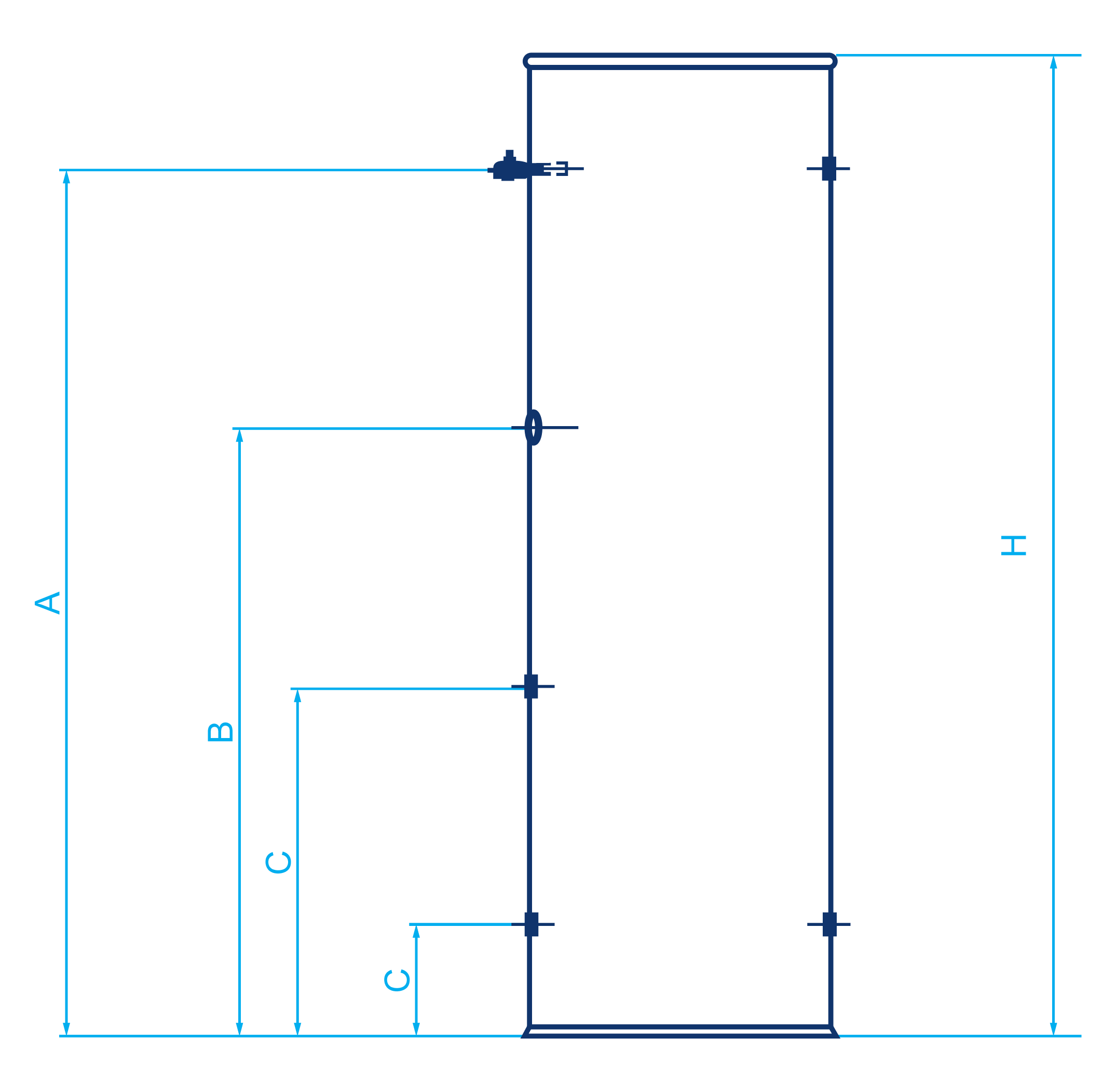

Technical Data
| SAN-160AQA | SAN-250AQA | SAN-300AQA | SAN-315AQA | SAN-315VE | |
| Height (mm) | 970 | 1428 | 1891 | 1748 | 1626 |
| Hot Water Outlet & PTR Valve (mm) | 753 | 1212 | 1693 | 1531 | 1432 |
| Sensor Port (mm) | 249 | 708 | 1086 | 1027 | 1111 |
| Cold Water Inlet / Heat Pump Flow (mm) | 223 | 222 | 208 | 221 | 115 |
| Diameter (mm) | 621 | 621 | 580 | 621 | 638 |
| Weight | 29kg | 45kg | 50kg | 55kg | 90kg |
| Storage Capacity | 160L | 250L | 300L | 315L | 315L |
| Inner Tank | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Tank Relief Valve Setting (PTR valve) | 850 (kPa) | 850 (kPa) | 850 (kPa) | 850 (kPa) | 850 (kPa) |
| Expansion Control Valve Setting (ECV) | 700 (kPa) | 700 (kPa) | 700 (kPa) | 700 (kPa) | 700 (kPa) |
| With ECV | 500 (kPa) | 500 (kPa) | 500 (kPa) | 500 (kPa) | 500 (kPa) |
| Inlet Water Operating Pressure | 500 (kPa) | 500 (kPa) | 500 (kPa) | 500 (kPa) | 500 (kPa) |
| Adjustable Tempering Valve | 1400 (kPa) | 1400 (kPa) | 1400 (kPa) | 1400 (kPa) | 1400 (kPa) |
| Hot and Cold Connectin | Rp 20 (3/4") Female | Rp 20 (3/4") Female | Rp 20 (3/4") Female | Rp 20 (3/4") Female | Rp 20 (3/4") Female |
| Watermark Licence No. | WM-022333 | WM-022333 | WM-022333 | WM-022333 | WM-022333 |
| Colour | Surfmist & Inronstone Ends | Surfmist & Inronstone Ends | Surfmist & Inronstone Ends | Surfmist & Inronstone Ends | Surfmist & Inronstone Ends |
| Country of Manufacture | Australia | Australia | Australia | Australia | Australia |
| Warranty | 15 years Prorata (excluses WA) | 15 years Prorata (excluses WA) | 15 years Prorata (excluses WA) | 15 years Prorata (excluses WA) | 15 years Prorata (excluses WA) |
