GRAVITY FEED PRODUCT SPECIFICATIONS
Floor Mounted Water Heaters
Open Vented Floor Mounted Water Heaters
Wilson low pressure electric water heaters are designed to operate up to a head pressure of 7.0 metres via an overhead cold water feed tank. The water heater can be installed in the ceiling space or at floor level. The position of the overhead cold water feed tank controls the flow performance of the heater: the higher the header tank (max. 7m), the better the flow rate. These hot water heaters must be vented to atmosphere.

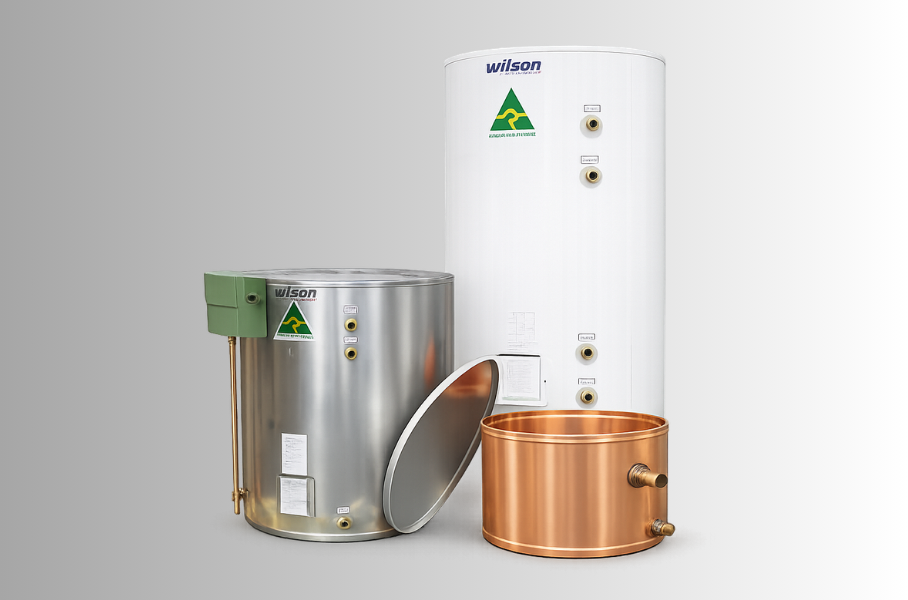

Wilson floor type electric hot water systems are constructed of copper, enclosed in an extremely efficient insulation with a painted steel outer case. These water heaters can be heated with alternative energy options, such as solar and/or stove and can be fitted with a mains pressure coil.
Features
- Long life low pressure copper cylinder
- High quality foam insulation
- Utilise other heat sources by installing heat exchange coils
- Additional coils can be added
- 3.6 kW electric element fitted as standard
Specifications
- Mains Pressure Coil – Floor Model (max 7 metre head) For use with separate cold feed tank (not supplied). Includes: 25mm stove & solar connections including electric element
- Standard Electric – Floor Model (max 7 metre head) For use with separate cold feed tank (not supplied). Available Options: B = Booster Twin Element, FR = Stove Connections, S = Solar Connections
Technical Data
| Model | Delivery (L) | Size (mm) | Coil Size (mtr x mm) | Element Size (kW) | |||
| 0V250C | 250 | 660 D X 1255 H | 27 x 19 | 3.6 | |||
| 0V250XC | 25 | 790 D X 920 H | 27 x 19 | 3.6 | |||
| 0V315C | 315 | 660 D X 1575 H | 27 x 19 | 3.6 | |||
| 0V315C1 | 315 | 660 D X 1575 H | 36 x 19 | 3.6 | |||
| 0V315XC | 315 | 790 D X 1085 H | 27 x 19 | 3.6 | |||
| 0V315XC1 | 315 | 790 D X 1085 H | 36 x 19 | 3.6 | |||
| 0V400XC | 400 | 790 D X 1365 H | 36 x 19 | 3.6 | |||
| 0V400XC1 | 400 | 790 D. X 1365 H | 36 x 19 | 3.6 | |||
| Note : For use with separate cold feed tank (Not supplied) Includes: 25mm stove & solar connections including electric element | |||||||
| Model | Delivery (L) | Diameter (mm) | Element Size (kW) | |||||
| 0V250 | 250 | 660 D X 1255 H | 3.6 | |||||
| 0V315 | 315 | 660 D X 1575 H | 3.6 | |||||
| 0V400 | 400 | 790 D X 1365 H | 3.6 | |||||
| Options : B - Booster Twin Element | ||||||||
| FR - Stove Connections | ||||||||
| S - Solar Connections | ||||||||
| Note : For use with separate cold feed tank (Not supplied) Available | ||||||||
Customisations
At Wilson, we offer a range of customisations to meet your specific requirements. Need a larger outlet? We’ve got you covered. Get in touch with us to inquire about the costs for larger outlets tailored to your needs.
Looking for added convenience? Our solenoid valve can be wired to a power point and fitted with a timer, giving you control over when water enters the unit. Say goodbye to guesswork and hello to efficiency.
Explore Wilson’s Customised Solutions for tailored products designed just for you. Learn more about how we can meet your unique needs.
